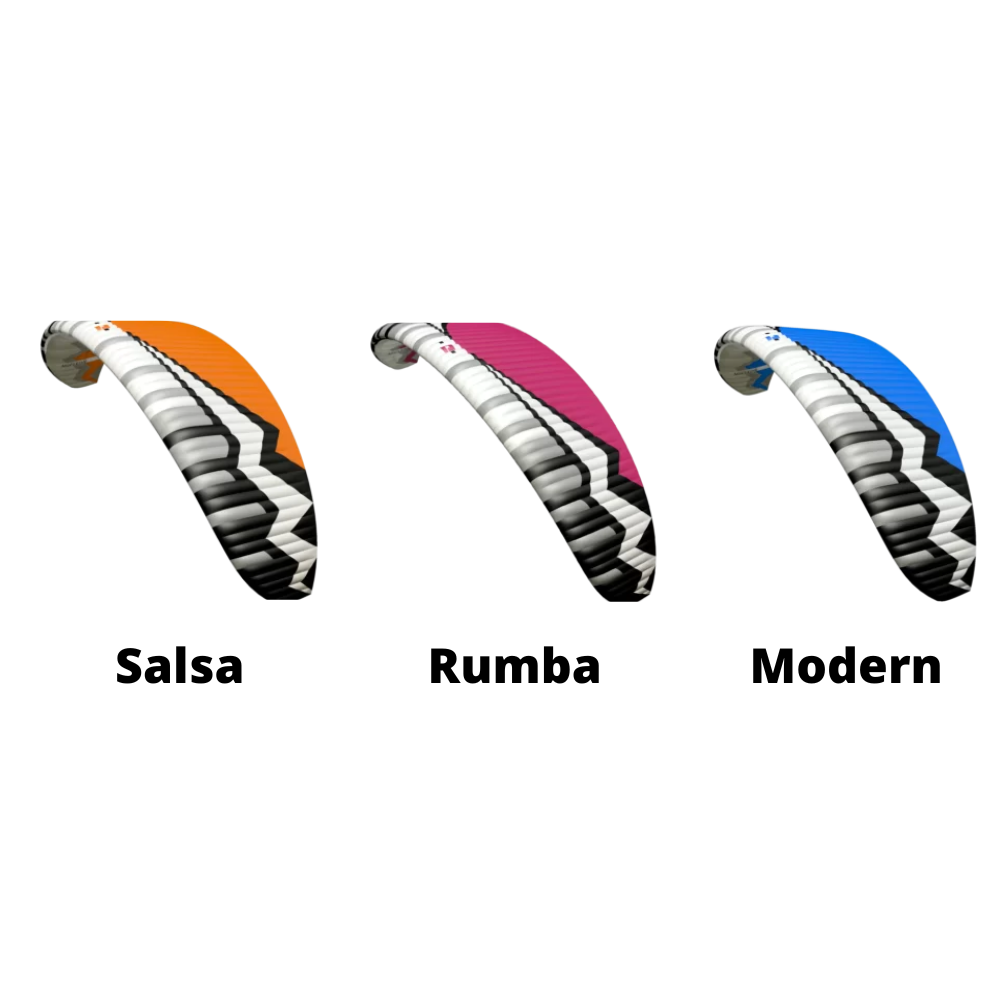

Dudek Nucleon 4

Have Questions?

As you start researching you'll find yourself having more and more questions. Our full-time team is available 7 days a week to answer any question you might have. Please don't hesitate to reach out!

Call or Text - (801) 599-1684
Email - Info@BackcountryPPG.com

TECHNICAL DETAILS

Size	18	20	22	24	26	28
Approval – ULM identification
Number of cells	60
Surface area (flat) [m2]	18.00	20.00	22.00	24.00	26.00	28.00
Surface area (projected) [m2]	15.29	16.99	18.68	20.38	22.08	23.78
Span (flat) [m]	10.04	10.58	11.10	11.59	12.07	12.52
Span (projected) [m]	7.93	8.36	8.77	9.15	9.53	9.89
Aspect Ratio (flat)	5,60
Aspect Ratio (projected)	4,11
Speed* [km/h]	min = 28 ; trim = 42-53 ; max = 67 (+/- 3 km/h)*
Longest chord [mm]	2210	2330	2443	2552	2656	2756
Schortest chord [mm]	525	581	610	637	663	688
Distance pilot to wing [m]	6.02	6.35	6.66	6.96	7.24	7.52
Total line length [m]	272.90	288.30	302.95	316.95	330.37	343.29
Total take-off weight** [kg]	70-100**	80-110**	90-120**	100-130**	105-140**	115-150**
Max take-off weight – for experienced [kg]***	110***	125***	135***	150***	160***	175***
Distance betwen risers [cm]	45	45	45	45	45	45
Weight [kg]	4.82	5.13	5.51	5.82	6.24	6.63
Lines	Edelrid A-8000U: 050; 090 / Technora: 90; 140; 190; 280; 340 / Dyneema: 350
Fabric [g/m2]	Porcher Classic 38 g/m2, Dominico tex 34 g/m2, Porcher Hard 40 g/m2, SR Scrim, SR Laminate 180 g/m2
